Multi-Color Horizontal Injection Molding Machine
Product No : CSM-Series
Product Description

Clamping Force : 120 - 550 ton

Injection Capacity : 0.5 - 50 oz

Main Features :

  • Excellent mechanical balance results from single-cylinder direct-hydraulic clamping system.
  • Two independent ejectors maximize operational convenience.
  • Adapting turn-core mechanism to achieve high flexibility of application.

Optional Feature : Facilitating additional injection unit to meet moking demand for the 3rd color or component.

Inquiry

Click type (A~H) of the injection unit options (I & II) to see their specifications.

MODEL (Clamping Force)UNITCSM-120TCSM-150TCSM-200T
INJECTION UNIT OPTIONSERIES NO.IIIIIIIII
A, BA, BA, B, CA, B, CB, C, DB, C, D
CLAMPING UNIT Clamping force ton 120 150 200
Minimum mold height mm 180 200 220
Opening stroke mm 460 580 700
Maximum daylight mm 640 480 920
Distance between tie bars(H x V) mm 410x410 460x460 520x520
Platen size (H x V) mm 590x590 690x690 770x770
Rotary table diameter mm Ø530 Ø610 Ø700
Ejector stroke mm 120 150 150
Ejector force ton 4.9 4.9 5.8
OTHERS Electric power hp (kW) 25(18.7) 30(22.5) 40(30)
Oil tank capacity l 290 400 540
Machine dimensions (L x W x H) m 4.4x1.2x1.9 5.0x1.3x2.1 5.5x1.4x2.1
Machine weight ton 5.7 7.8 10.5
INJECTION UNIT OPTIONUNITABCD
INJECTION UNIT Screw diameter mm Ø18 Ø22 Ø25 Ø22 Ø25 Ø30 Ø25 Ø30 Ø35 Ø30 Ø35 Ø40
Theoretical injection volume cm3 25 38 49 45 58 84 68 98 134 113 154 201
Injection capacity (PS) g 23 35 45 41 52 76 62 89 122 103 140 183
Injection pressure kg/cm2 3038 2033 1575 2612 2033 1404 2800 1944 1428 2800 2057 1574
Injection rate cm3/S 36 54 70 42 55 79 56 81 110 78 106 138
Plasticizing capacity (PS) kg/h 14 23 32 15 21 33 23 35 54 32 49 69
Screw rotation speed rpm 10-375 10-253 10-270 10-249
Heating capacity kW 3 3.5 5.1 6.9
Required driving power hp (kW) 10(7.5) 10(7.5) 15(11.2) 20(15)

Click type (A~H) of the injection unit options (I & II) to see their specifications.

MODEL (Clamping Force)UNITCSM-250TCSM-300TCSM-430T
INJECTION UNIT OPTIONSERIES NO.IIIIIIIII
B, C, D, EB, C, D, EC, D, E, FC, D, E, FD, E, F, GD, E, F, G
CLAMPING UNIT Clamping force ton 250 300 430
Minimum mold height mm 220 260 280
Opening stroke mm 780 850 950
Maximum daylight mm 1000 1110 1230
Distance between tie bars(H x V) mm 560x560 650x650 750x750
Platen size (H x V) mm 840x840 970x970 1090x1090
Rotary table diameter mm Ø700 Ø880 Ø1020
Ejector stroke mm 150 180 200
Ejector force ton 5.8 7.7 12.5
OTHERS Electric power hp (kW) 40(30) 60(45) 80(60)
Oil tank capacity l 540 820 930
Machine dimensions (L x W x H) m 5.5x1.4x2.1 6.3x1.6x2.4 7.1x1.7x2.6
Machine weight ton 10.5 14.5 18.8
INJECTION UNIT OPTIONUNITBCDEFG
INJECTION UNIT Screw diameter mm Ø22 Ø25 Ø30 Ø25 Ø30 Ø35 Ø30 Ø35 Ø40 Ø35 Ø40 Ø45 Ø40 Ø45 Ø50 Ø45 Ø50 Ø55
Theoretical injection volume cm3 45 58 84 68 98 134 113 154 201 173 226 286 276 350 432 350 432 522
Injection capacity (PS) g 41 52 76 62 89 122 103 140 183 157 205 260 262 332 410 332 410 496
Injection pressure kg/cm2 2612 2033 1404 2800 1944 1428 2800 2057 1574 2063 1993 1574 2460 1944 1575 2497 2023 1672
Injection rate cm3/S 42 55 79 56 81 110 78 106 138 98 128 162 128 162 200 182 226 273
Plasticizing capacity (PS) kg/h 15 21 33 23 35 54 32 49 69 43 60 83 50 69 92 75 100 128
Screw rotation speed rpm 10-253 10-270 10-249 10-218 10-180 10-195
Heating capacity kW 3.5 5.1 6.9 7.5 8.1 11
Required driving power hp (kW) 10(7.5) 15(11.2) 20(15) 25 (18.7) 30(22.5) 40(30)

Click type (A~H) of the injection unit options (I & II) to see their specifications.

MODEL (Clamping Force)UNITCSM-550T
INJECTION UNIT OPTIONSERIES NO.III
E, F, G, HE, F, G, H
CLAMPING UNIT Clamping force ton 550
Minimum mold height mm 350
Opening stroke mm 1050
Maximum daylight mm 1400
Distance between tie bars(H x V) mm 850x850
Platen size (H x V) mm 1240x1240
Rotary table diameter mm Ø1120
Ejector stroke mm 200
Ejector force ton 12.5
OTHERS Electric power hp (kW) 100(75)
Oil tank capacity l 1140
Machine dimensions (L x W x H) m 7.8x1.9x2.8
Machine weight ton 25
INJECTION UNIT OPTIONUNITEFGH
INJECTION UNIT Screw diameter mm Ø35 Ø40 Ø45 Ø40 Ø45 Ø50 Ø45 Ø50 Ø55 Ø50 Ø55 Ø60
Theoretical injection volume cm3 173 226 286 276 350 432 350 432 522 471 570 678
Injection capacity (PS) g 157 205 260 262 332 410 332 410 496 447 541 644
Injection pressure kg/cm2 2063 1993 1574 2460 1944 1575 2497 2023 1672 2527 2088 1754
Injection rate cm3/S 98 128 162 128 162 200 182 226 273 203 246 292
Plasticizing capacity (PS) kg/h 43 60 83 50 69 92 75 100 128 90 115 144
Screw rotation speed rpm 10-218 10-180 10-195 10-176
Heating capacity kW 7.5 8.1 11 13
Required driving power hp (kW) 25 (18.7) 30(22.5) 40(30) 50(37.5)

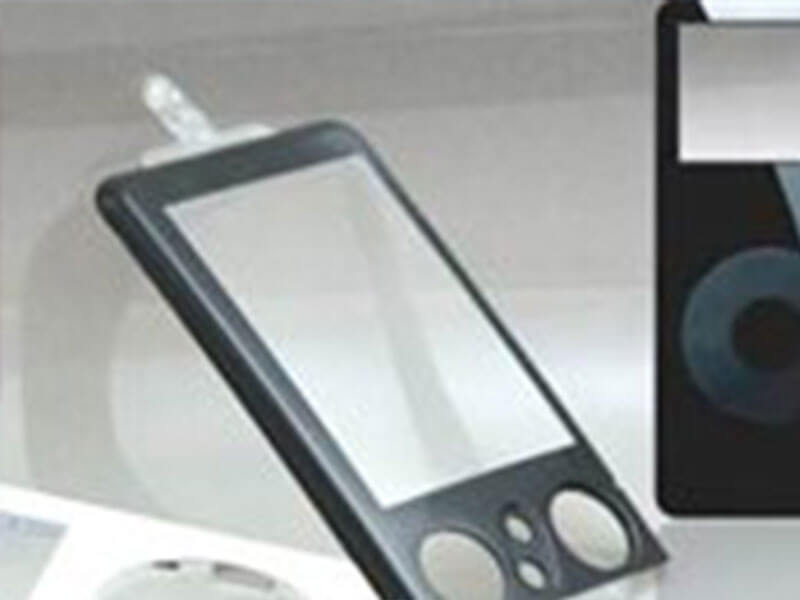

proimages/product/3-Multi-Color_Injection_Molding_Machine/pro6-2.jpg
