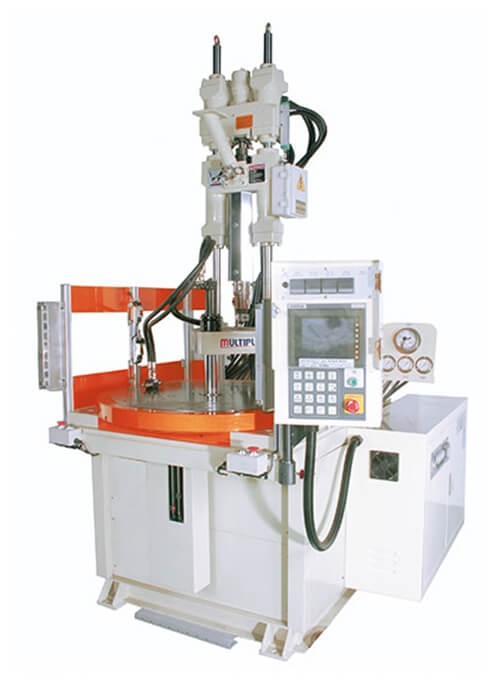

Rotary Table-Vertical Clamping Injection Molding Machine
Product No : Model-V-R
Product Description

Clamping Force : 10 - 500 ton

Injection Capacity : 0.5 - 50 oz

Main Features :

  • Vertical clamping, vertical injection.
  • Compact design requires less floor space. Makes the take-out process more easilier.

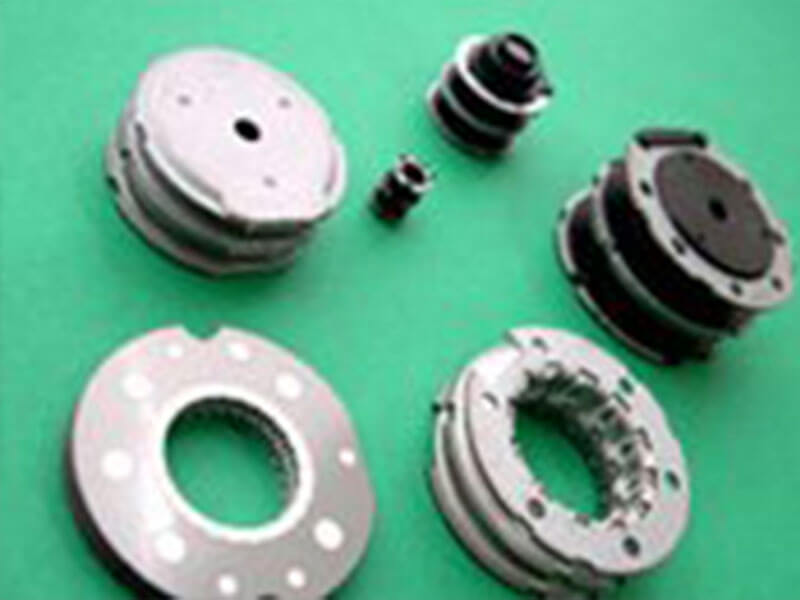

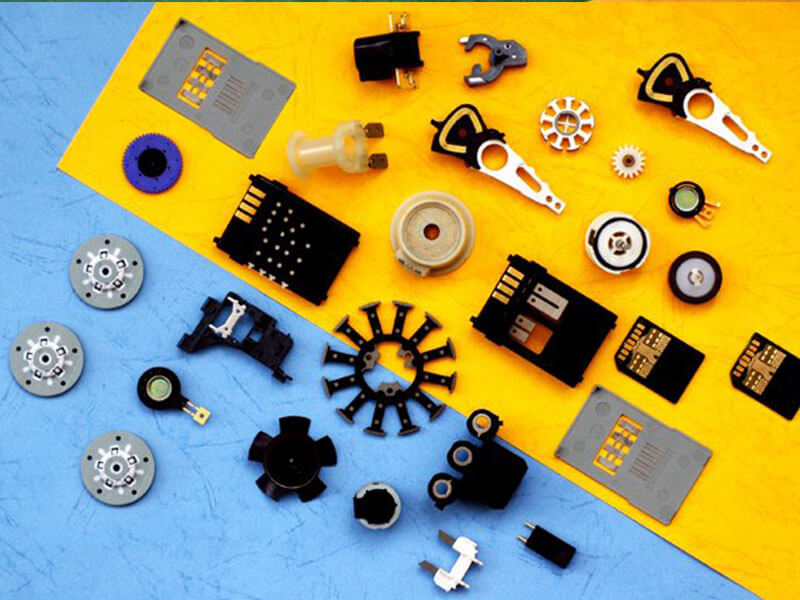

  • Suitable for multi-purpose injection molding. Excellent for insert molding.

Optional Feature : High-speed injection unit utilizing closed-loop system.

Inquiry
MODELUNITV2-V4V4-SV4-SDV3-RV4-V4-S-V4-SD-V3-R-
15N35T
INJECTION UNIT Screw diameter mm Ø20　　Ø25 Ø22　　Ø25　　Ø28
Theoretical injection volume cm3 35　　54 46　　59　　74
Injection capacity(PS) g 43　　67 43　　55　　69
Injection pressure kg/cm2 2240　　1434 2531　　1960　　1563
Injection rate cm3/s 21　　33 34　　44　　55
Plasticizing capacity(PS) kg/h 7 15　　20
Screw rotation speed rpm 135 164 164 185 185 186
Heating capacity kW 2 2 2 2 2 3.3
CLAMPING UNIT Clamping force ton 15 15 15 15 15 35
Minimum mold height mm 40-90 100-150 100-150 100-150 80-160 150-250
Opening storke mm 180 180 180 180 180 200
Maximum daylight mm 220-270 280-330 280-330 280-330 260-340 350-450
Ejector stroke mm 35 35 60 60 45 40 60 60 45
Ejector force ton 1.8 1.8 2.3 2.3 2.3 1.8 2.7 2.3 2.3
OTHERS Electric power hp(kW) 3/2.2 5/3.7 5/3.7 7.5/5.6 7.5/5.6 7.5/5.6 7.5/5.6 10/7.5 10/7.5
Oil tank capacity l 100 100 100 125 150 120 120 145 230
Cooling water capacity l/hr 900 900 900 1300 1300 1200 1200 1600 1600
Slide table stroke mm - - 220 250 - - 365 350 -
Rotary table diameter mm - - - - 580 - - - 740
Machine dimensions(LxWxH) m 1.3x1.0x2.6 1.3x1.0x2.6 1.35x1.1x2.4 1.5x1.7x2.65 1.6x1.3x2.7 1.55x1.15x2.8 1.5x1.15x2.85 1.5x1.85x2.85 2.0x1.55x2.8
Machine weight ton 0.7 0.73 0.78 1.2 - 1.2 1.3 1.6 -
MODELUNITV4-V4-SV4-SD-V3-R-V4-V4-S-V4-SD-V3-R-
55T85T
INJECTION UNIT Screw diameter mm Ø25　　Ø28　　Ø32 Ø32　　Ø36　　Ø40
Theoretical injection volume cm3 69　　86　　113 113　　143　　176
Injection capacity(PS) g 65　　81　　106 106　　134　　165
Injection pressure kg/cm2 2330　　1857　　1422 2331　　1842　　1492
Injection rate cm3/s 47　　59　　77 67　　85　　105
Plasticizing capacity(PS) kg/h 21　　39 44　　58　　73
Screw rotation speed rpm 187 269
Heating capacity kW 3.9 5.3
CLAMPING UNIT Clamping force ton 55 85
Minimum mold height mm 180-280 200-300
Opening storke mm 200 250
Maximum daylight mm 380-480 450-550
Ejector stroke mm 40 60 60 100 50 100 100 100
Ejector force ton 108 2.7 2.3 2.3 1.8 2.7 2.7 2.3
OTHERS Electric power hp(kW) 10/7.5 10/7.5 15/11.2 15/11.2 15/11.2 15/11.2 20/18.7 20/18.7
Oil tank capacity l 145 145 190 200 250 250 240 310
Cooling water capacity l/hr 1500 1500 2400 2400 2200 2200 2800 2800
Slide table stroke mm - 410 430 - - 410 550 -
Rotary table diameter mm - - - 800 - - - 980
Machine dimensions(LxWxH) m 1.6x1.2x2.95 1.7x1.2x3.0 1.7x2.15x3.0 2.0x1.65x3.05 2.1x1.4x3.3 2.15x1.4x3.4 2.05x1.85x3.4 2.3x1.75x3.45
Machine weight ton 1.7 1.8 2.1 2.6 2.9 3.3 3.8 3.9
MODELUNITV4-V4-SV4-SD-V3-R-V4-V4-S-V4-SD-V3-R-
120T160T
INJECTION UNIT Screw diameter mm Ø36　　Ø40　　Ø45 Ø40　　Ø45　　Ø50
Theoretical injection volume cm3 163　　201　　254 251　　318　　393
Injection capacity(PS) g 153　　189　　239 236　　299　　369
Injection pressure kg/cm2 1993　　1614　　1276 2310　　1825　　1478
Injection rate cm3/s 101　　125　　158 108　　137　　169
Plasticizing capacity(PS) kg/h 66　　84　　101 92　　112　　140
Screw rotation speed rpm 289 300
Heating capacity kW 6.5 8.3
CLAMPING UNIT Clamping force ton 120 160
Minimum mold height mm 200-300 250-350
Opening storke mm 280 300
Maximum daylight mm 480-580 550-650
Ejector stroke mm 65 100 100 100 65 125 125 125
Ejector force ton 2.7 5.4 5.4 5.4 4.6 5.4 5.4 5.4
OTHERS Electric power hp(kW) 20/14.9 20/14.9 25/18.7 25/18.7 25/18.7 25/18.7 30/22.4 30/22.4
Oil tank capacity l 300 300 230 330 350 350 310 400
Cooling water capacity l/hr 2880 2800 3400 3400 3400 3400 4000 4000
Slide table stroke mm - 460 650 - - 650 690 -
Rotary table diameter mm - - - 1170 - - - 1370
Machine dimensions(LxWxH) m 2.2x1.6x3.9 2.2x1.6x4.0 2.1x1.85x3.8 2.55x2.1x4.0 2.2x1.75x4.4 2.3x1.75x4.5 2.4x2.2x4.5 2.65x2.15x4.45
Machine weight ton 4.1 4.6 5.4 5.8 6.1 6.8 7.3 7.6
MODELUNITV4-V4-SV4-SD-V3-R-V4-V4-S-V4-SD-V3-R-
200T250T
INJECTION UNIT Screw diameter mm Ø50　　Ø55　　Ø60 Ø50　　Ø55　　Ø60
Theoretical injection volume cm3 432　　523　　622 432　　523　　622
Injection capacity(PS) g 406　　491　　585 406　　491　　585
Injection pressure kg/cm2 1803　　1490　　1252 2061　　1703　　1431
Injection rate cm3/s 171　　207　　246 201　　243　　289
Plasticizing capacity(PS) kg/h 116　　135　　161 116　　135　　161
Screw rotation speed rpm 220 220
Heating capacity kW 11.6 11.6
CLAMPING UNIT Clamping force ton 200 250
Minimum mold height mm 300-400 300-400
Opening storke mm 350 400
Maximum daylight mm 650-750 700-800
Ejector stroke mm 75 150 150 150 100 200 200 200
Ejector force ton 4.6 5.4 5.4 5.4 5.3 6.2 6.2 6.2
OTHERS Electric power hp(kW) 30/22.4 30/22.4 40/29.8 40/29.8 40/29.8 40/29.8 50/37.3 50/37.3
Oil tank capacity l 410 410 450 450 600 600 600 600
Cooling water capacity l/hr 4200 4200 5600 5600 4900 4900 6200 6200
Slide table stroke mm - 700 750 - - 750 780 -
Rotary table diameter mm - - - 1590 - - - 1800
Machine dimensions(LxWxH) m 2.3x1.85x4.8 2.6x1.85x4.95 2.7x2.5x4.95 3.35x2.25x4.95 2.6x1.95x4.9 2.9x1.95x5.25 2.8x2.8x5.25 3.65x2.45x5.25
Machine weight ton 7.5 8.4 9.0 10 9.0 10.0 10.5 -
