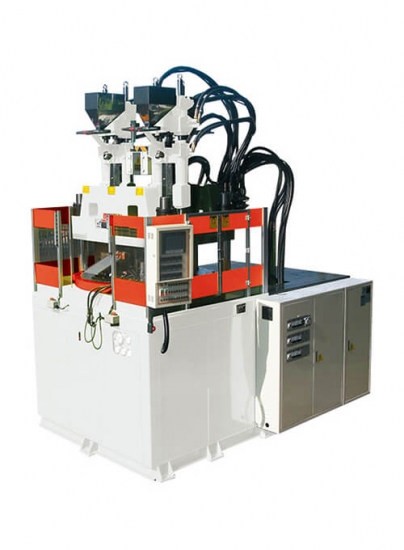

Multi-Color Vertical Injection Molding Machine
Product No : Model-V4-3(4)RU-2(3)C
Product Description

Clamping Force : 10 - 500 ton

Injection Capacity : 0.5 - 50 oz

Main Features :

  • Vertical clamping, vertical injection.
  • Compact design requires less floor space. Makes the take-out process more easilier.
  • Suitable for multi-purpose injection molding. Excellent for insert molding.

Optional Feature : High-speed injection unit utilizing closed-loop system.

Inquiry

Click type (A~H) of the injection unit options (I & II) to see their specifications.

MODEL (Clamping Force)UNITV4-R-80T-2CV4-R-120T-2CV4-R-170T-2C
INJECTION UNIT OPTIONSERIES NO.IIIIIIIII
AAA, BA, BA, B, CA, B, C
CLAMPING UNIT Clamping force ton 80(40X2) 120(60X2) 170(85X2)
Minimum mold height mm 250~330 250~330 260~360
Opening storke mm 250 280 350
Maximum daylight mm 500~580 530~610 610~710
Ejector stroke mm 100 100 130
Ejector force ton 2.7 2.7 5.4
Rotary table diameter mm Ø880 Ø1000 1200
Cooling water capacity l/h 3100 3600 6000
OTHERS Electric power hp (kW) 20/14.9 25/18.7 40/29.8
Oil tank capacity l 310 360 680
Machine dimensions(LxWxH) m 2.25x1.85x3.4 2.3x2.15x3.45 2.7x2.3x4.1
Machine weight ton 4.6 8 12.2
INJECTION UNIT OPTIONUNITABC
INJECTION UNIT Screw diameter mm Ø20　　Ø22 Ø22 Ø25 Ø28 Ø25 Ø28 Ø32
Theoretical injection volume cm3 31　　38 49 59 74 69 86 113
Injection capacity (PS) g 30　　36 43 55 69 65 81 106
Injection pressure kg/cm2 2013　　1663 2531 1960 1563 2330 1857 1422
Injection rate cm3/S 32　　39 36 47 58 49 62 81
Plasticizing capacity (PS) kg/h 7　　9 11 15 20 15 21 29
Screw rotation speed rpm 164 186 187
Heating capacity kW 2.7 3.3 3.9

Click type (A~H) of the injection unit options (I & II) to see their specifications.

MODEL (Clamping Force)UNITV4-R-200T-2CV4-R-240T-2CV4-R-320T-2C
INJECTION UNIT OPTIONSERIES NO.IIIIIIIII
B, C, D, EB, C, D, EC, D, E, FC, D, E, FD, E, F, GD, E, F, G
CLAMPING UNIT Clamping force ton 200(100x2) 240(120x2) 320(160x2)
Minimum mold height mm 280-380 300-400 350-450
Opening storke mm 350 400 400
Maximum daylight mm 630-730 700-800 750-850
Ejector stroke mm 130 150 150
Ejector force ton 5.4 5.4 5.4
Rotary table diameter mm Ø1200 Ø1350 Ø1500
Cooling water capacity l/h 6800 8400 10000
OTHERS Electric power hp (kW) 50/37.3 60/44.8 70/52.2
Oil tank capacity l 680 880 1400
Machine dimensions(LxWxH) m 2.7x2.3x4.1 3.35x2.55x5.05 3.35x2.7x5.35
Machine weight ton 12.5 14.5 21
INJECTION UNIT OPTIONUNITBCDEFG
INJECTION UNIT Screw diameter mm Ø22 Ø25 Ø28 Ø25 Ø28 Ø32 Ø32 Ø36 Ø40 Ø36 Ø40 Ø45 Ø45 Ø50 Ø55 Ø50 Ø55 Ø60
Theoretical injection volume cm3 49 59 74 69 86 113 113 143 176 163 201 254 318 393 475 432 523 622
Injection capacity (PS) g 43 55 69 65 81 106 106 134 165 153 189 239 299 369 447 406 491 585
Injection pressure kg/cm2 2531 1960 1563 2330 1857 1422 2331 1842 1492 1993 1614 1276 1825 1478 1222 1803 1490 1252
Injection rate cm3/S 36 47 58 49 62 81 71 90 111 10 132 167 144 178 215 180 218 259
Plasticizing capacity (PS) kg/h 11 15 20 15 21 29 44 58 73 66 84 101 106 133 155 116 135 161
Screw rotation speed rpm 186 187 269 289 268 220
Heating capacity kW 3.3 3.9 5.3 6.5 8.3 8.3

Click type (A~H) of the injection unit options (I & II) to see their specifications.

MODEL (Clamping Force)UNITV4-R-500T-2CV4-R-700T-2C
INJECTION UNIT OPTIONSERIES NO.IIIIII
E, F, G, HE, F, G, HF, G, HF, G, H
CLAMPING UNIT Clamping force ton 500(250x2) 700(350x2)
Minimum mold height mm 350-500 350-500
Opening storke mm 500 500
Maximum daylight mm 850-1000 850-1000
Ejector stroke mm 200 200
Ejector force ton 6.2 7.0
Rotary table diameter mm Ø1800 Ø2000
Cooling water capacity l/h 14400 13000
OTHERS Electric power hp (kW) 100/74.6 100/74.6
Oil tank capacity l 2200 2300
Machine dimensions(LxWxH) m 4.4x3.05x6.0 4.5x3.3x6.1
Machine weight ton 29 40
INJECTION UNIT OPTIONUNITEFGH
INJECTION UNIT Screw diameter mm Ø36 Ø40 Ø45 Ø45 Ø50 Ø55 Ø50 Ø55 Ø60 Ø55 Ø60 Ø65
Theoretical injection volume cm3 163 201 254 318 393 475 432 523 622 594 707 830
Injection capacity (PS) g 153 189 239 299 369 447 406 491 585 558 664 780
Injection pressure kg/cm2 1993 1614 1276 1825 1478 1222 1803 1490 1252 1928 1620 1380
Injection rate cm3/S 10 132 167 144 178 215 180 218 259 222 264 310
Plasticizing capacity (PS) kg/h 66 84 101 106 133 155 116 135 161 143 171 201
Screw rotation speed rpm 289 268 220 220
Heating capacity kW 6.5 8.3 8.3 9.3
